Advantages and Disadvantages of FPC (Flexible Printed Circuits)

Column

Advantages of FPC

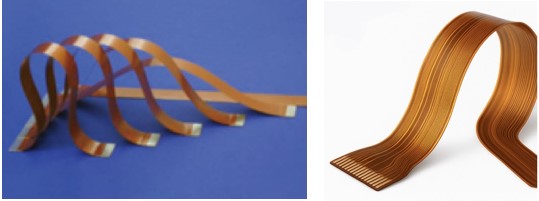

  1. Flexibility

    FPCs are highly flexible and lightweight, making them ideal for compact and lightweight device designs. They can be bent and shaped to fit tight spaces, which is especially valuable for modern, space-conscious electronic products.

    AdvantagesFPC_1

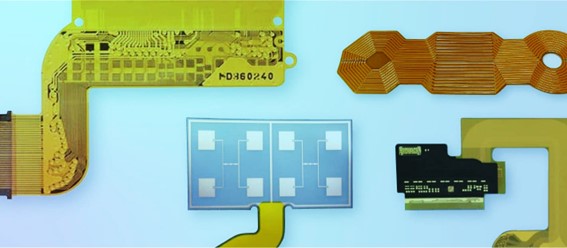

  2. Efficient Use of Space

    Since FPCs can be designed to fit precisely into tight or irregular spaces and allow for 3D routing, they enable optimal utilization of internal space within the device housing.

    AdvantagesFPC_2

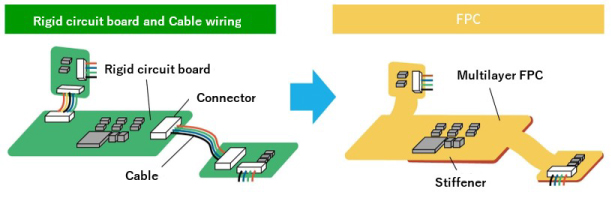

  3. Simplified Wiring

    By replacing traditional setups such as board-to-wire or board-to-board connections, FPCs reduce the number of components and assembly steps. This leads to improved reliability and reduced labor during assembly.

    AdvantagesFPC_3

  4. High Resistance to Vibration and Mechanical Stress

    With fewer connectors and solder joints, FPCs offer superior resistance to vibration and impact, contributing to better durability and reliability in harsh conditions.

Disadvantages of FPC

  1. Potential for Higher Total Cost

    Because FPCs are typically custom-designed for each application, they may involve initial design and tooling costs. For low-volume production, this can result in higher costs compared to using standard wiring solutions.

  2. Precaution for Lower Mechanical Strength

    3. While flexibility is a key advantage, it also means FPCs can be vulnerable to localized pulling or bending stress. Proper handling and strain relief are essential during design and assembly.

  3. Directional Bending Limitations

    4. As film- or tape-like materials, FPCs bend easily in the vertical (top-bottom) direction, but are not suitable for bending sideways (lateral direction). Designers must account for this directional constraint.

  4. Difficult to Repair or Rework

    5. Once mounting components on FPC, FPCs can be challenging to repair or modify, especially for users who are not experienced in handling them. Rework may require special tools or skills.
